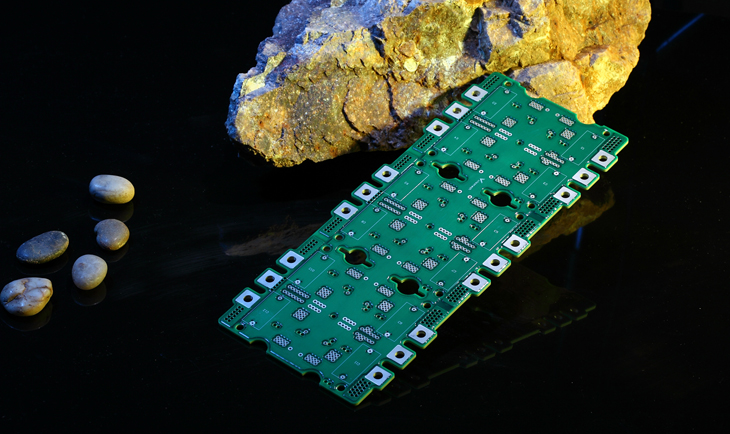

Heavy copper PCB

Parameters
Layers:  6
Thicknes:   3.75±0.38mm
Min. Hole Size:   1.3 (mm)
Width/Space:   0.1mm/0.1mm
Surface Treatment:   ENIG

Crafts
Inner Layer 12OZ, Outer Layer 6OZ
Special Parameter Control of Lamination, Drilling, Solder Mask Process

Applications
Engine Power Module
Net Power Module
